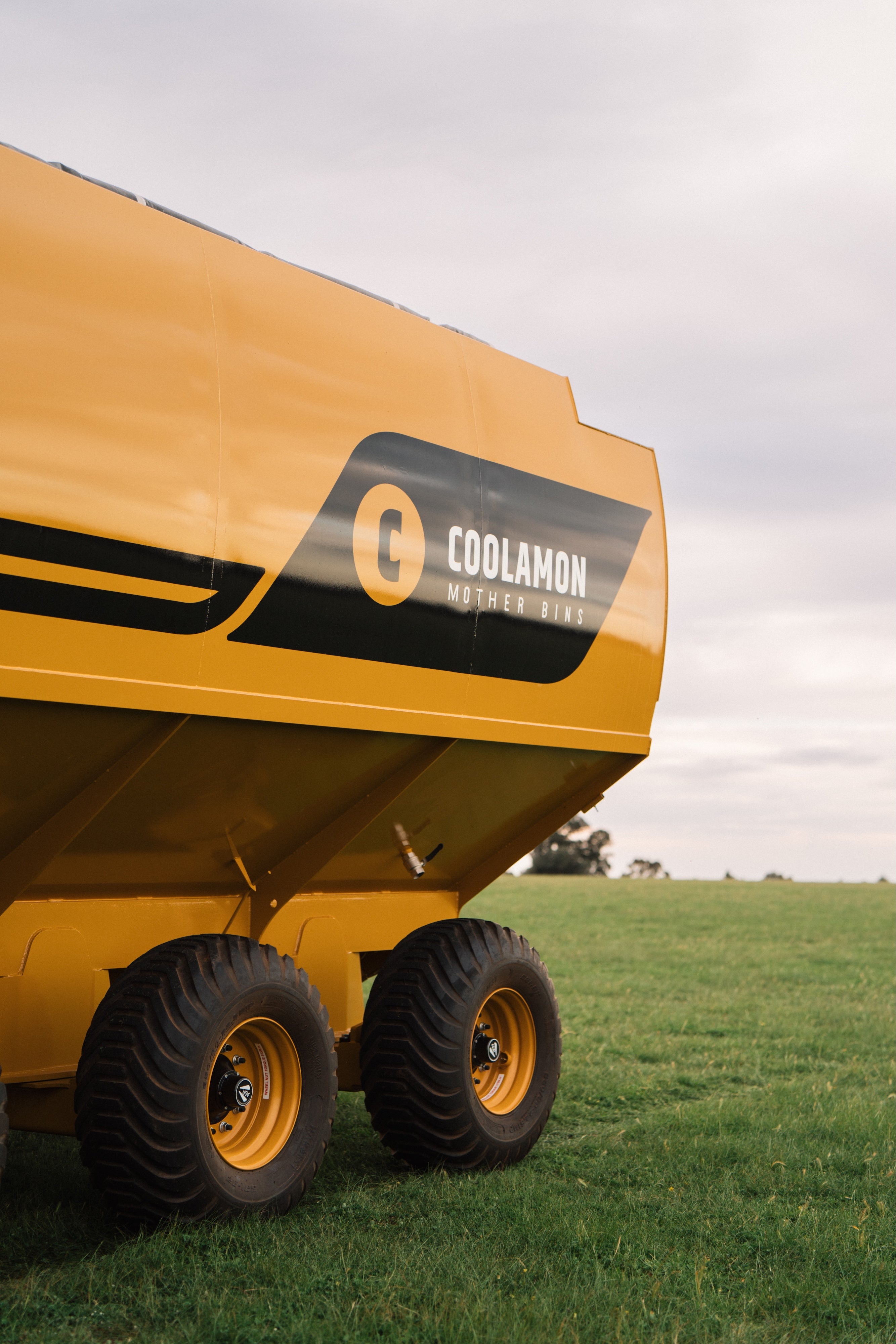

Flotation Tyres

550/60-22.5 tyres provide “bulldozing-free” travel across all paddock conditions.

Durable Paint System

High-quality 2-pack finish delivers long-lasting strength in harsh conditions.

Move Freely

All mother bins can be moved when 50% full

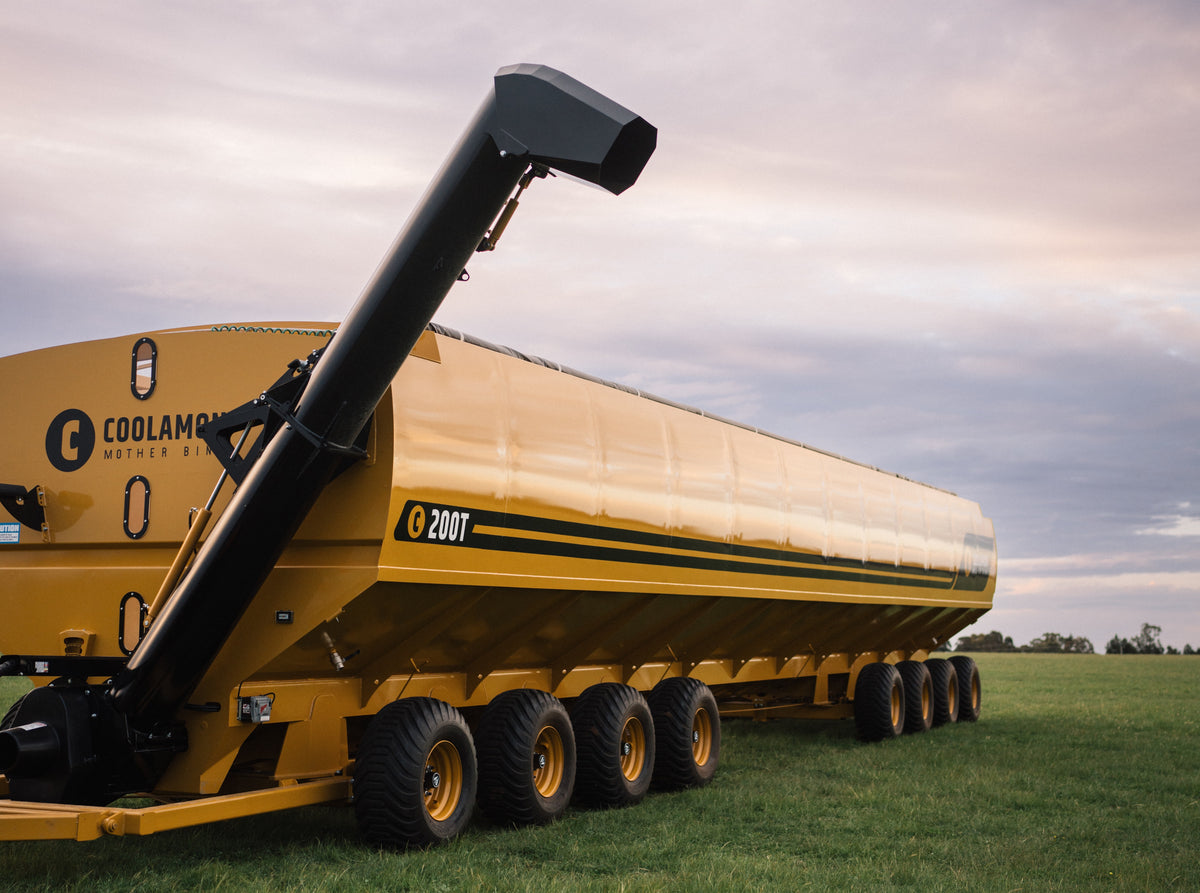

Unloading Auger

16" auger with hydraulic kicker for smooth, efficient unloading.

¾ Controlled Tarp

Electric operation for safe, fast coverage from the ground.

Clean-Out Doors

6" wide doors for quick, easy bin cleaning.

Linkage Steering

All-new front and rear mechanical linkage system for direct steering and easier maintenance.

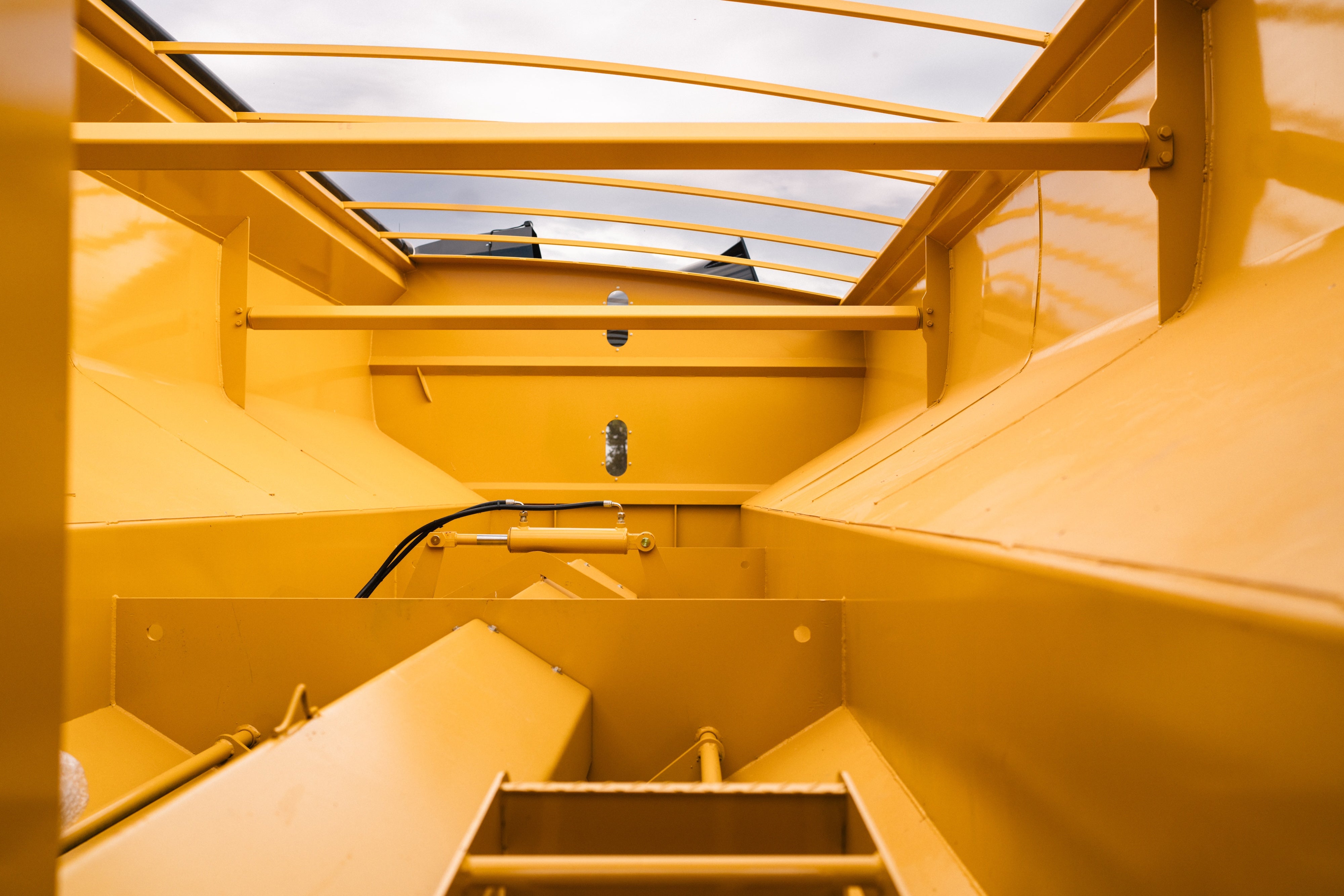

Rear Access Door

Allows safe inspection of the bin from a convenient rear entry point.

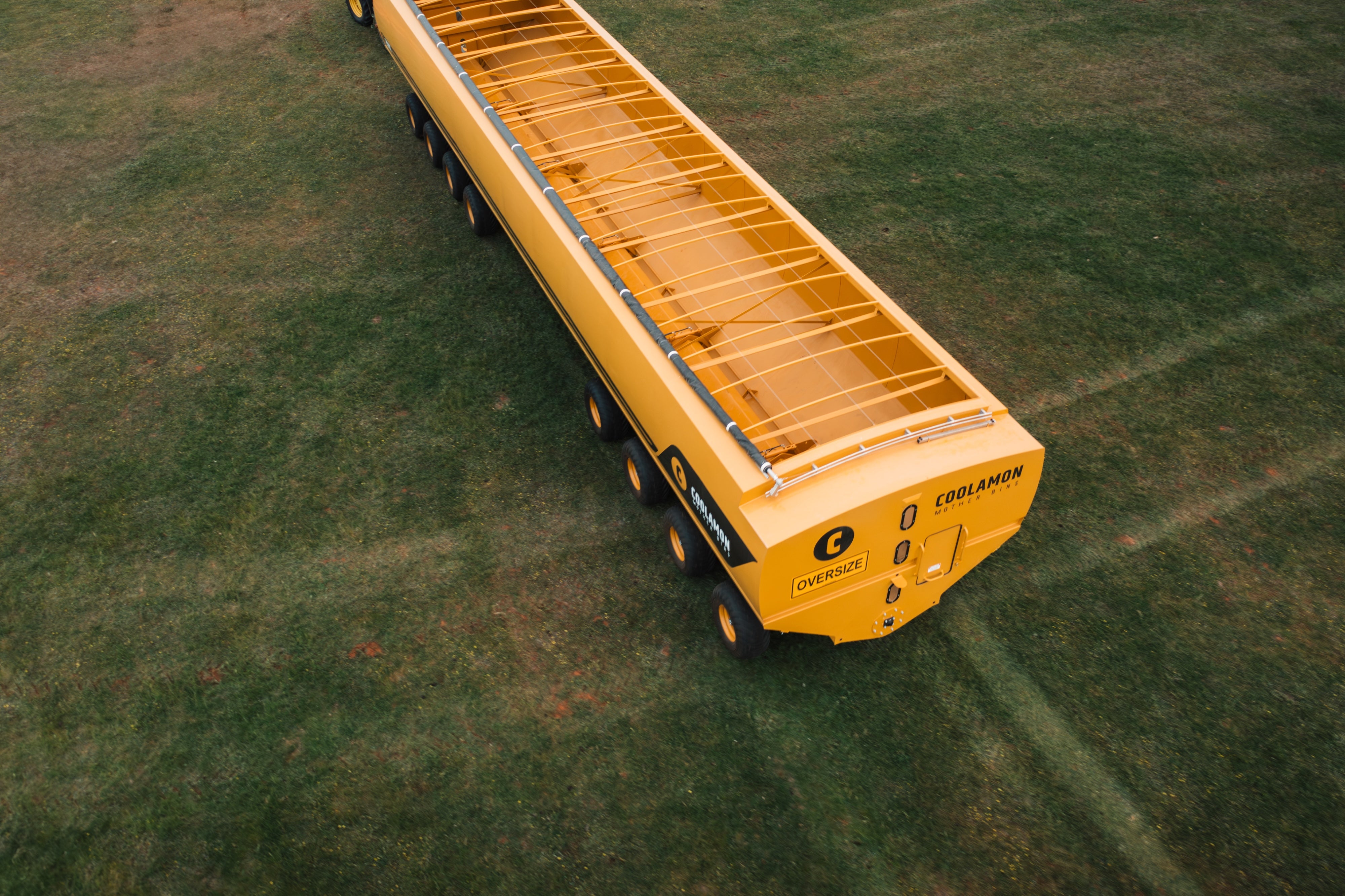

Curved Sides

Adds extra strength and durability to the bin structure.

Machine Dimensions

Length - 25.2m
Width - 4.5m
Height - 4.2m
Unloading Height - 5.6m

Machine Weights

Tare - 32 Tonne
Gross - 232 Tonne

Camera Pack

• 7” colour screen which is fitted inside the tractor cab
• Camera fitted to the top of auger to help see where the grain is going
• A second camera is fitted to the rear of the bin which provides eyes behind you when travelling down the road

Light Pack

• Includes taillights & revolving light at the rear
• Working light fitted to the top of the auger which is powered off the taillights with an automatic switch fitted at the delivery auger hinge point so the light automatically comes on when delivery auger is in working position
• 7- pin round large plug as standard

Weight Scales

• Agrimatics fitted standard: Bluetooth compatible with smart device, phone or tablet - https://www.agrimatics.com/agrimatics-libra
• Load sensing cell fitted inside the stub
• Load sensing cells are at every point of contact
• Each stub - Between drawbar and front pull tongue
• Accurate in field calibration of header yield monitoring systems
• Accurate in field loading of trucks to manage mass management
  lessens the need of a on farm weigh bridge
• The harvest yield data can be sent back to a desktop via the Cloud post harvest to assist in record keeping

Brakes

• Hydraulically operated ‘S’ cam drum brakes (air optional)
• Gives operator more stability and control
• Handy option for farmers with undulating country or for inexperienced operators
